4844 Outlaw Bar

The Challenge: one color, five substrates, one lighting condition

Core tension: The design called for a matte teal to read as a single continuous decision across painted sheet-good panels, face-frame cabinetry, a powder-coated metal privacy screen, velvet banquette upholstery, and the vanity base — each substrate taking finish differently, all evaluated under the same low, indirect LED lighting.

The venue operates almost entirely under indirect illumination. There is no overhead ambient wash: light comes from LED strips recessed beneath the bar counter overhang, from channels behind banquette backrests, and from strips at the base of the seating. Under those conditions, tonal variation in a matte finish reads immediately. For the millwork package, this meant that the bar front panels, the lounge wall paneling with its routed reveal grid, the back bar wall surface, and the vanity cabinetry all had to be finished and installed to produce the same visual tone — the same depth of color, the same sheen level — before any furniture, upholstery, or metalwork was placed adjacent to them.

The bar system imposed a second constraint. The polished Arabescato marble counter and brushed brass toe kick set a high material benchmark at the primary service point. Every millwork element visible from a seat in the main room — the panel base of the bar, the wall panels behind the banquettes, the vanity in the washrooms — had to hold up against that material register without claiming the same material weight.

Signature Element: The Main Bar — Counter, Base, and Ceiling-Suspended Shelving

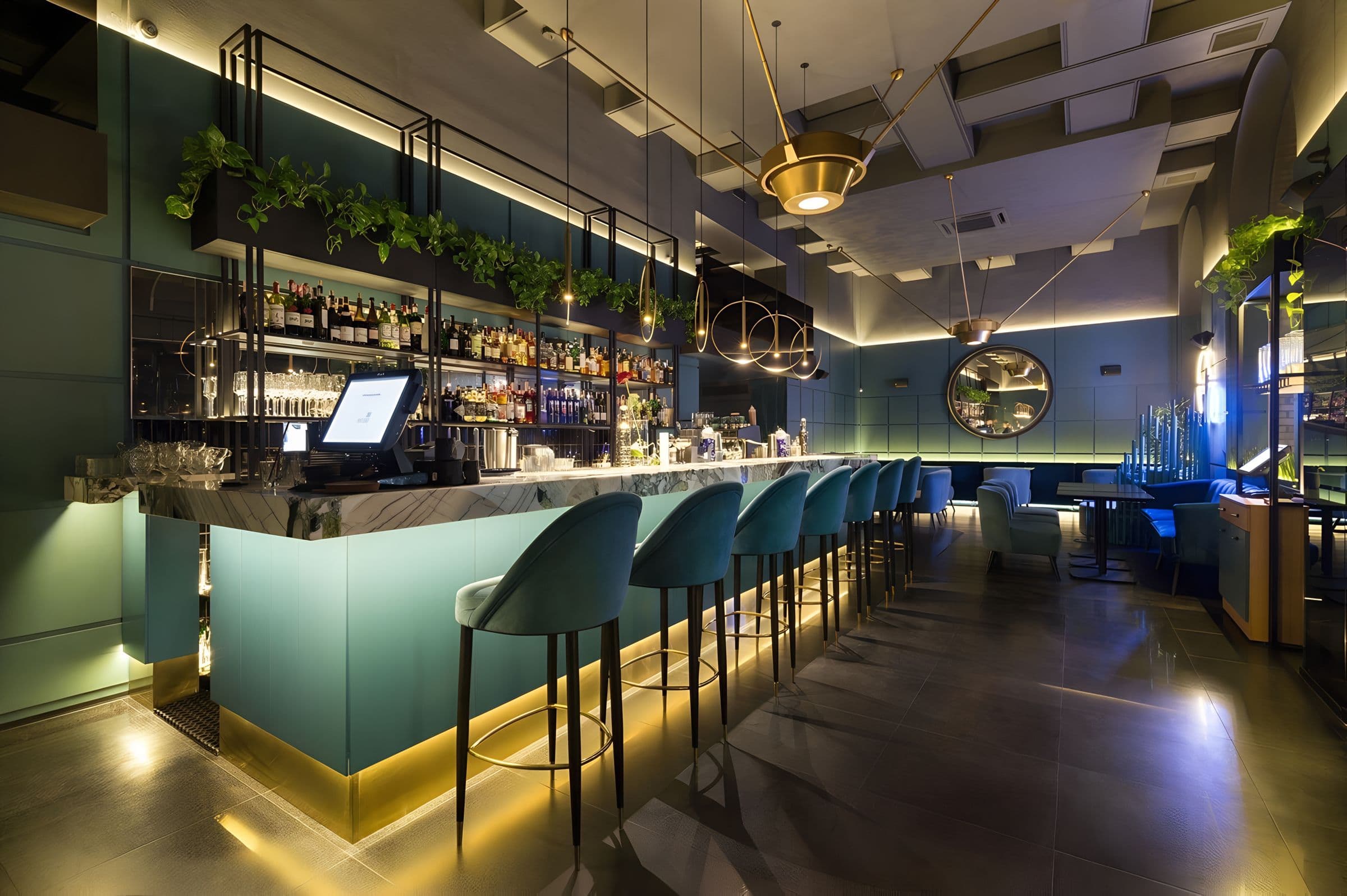

The primary bar runs as the linear anchor of the ground floor. The counter is surfaced in polished Arabescato marble — a heavily veined white and grey stone — with a pronounced overhang housing a continuous LED strip that washes downward onto the matte teal panel base below. The toe kick is finished in brushed brass banding, defining the base of the bar at floor level.

The back bar shelving is ceiling-suspended rather than counter-mounted: four vertical posts of matte black square tubular steel carry horizontal shelf rails, with brushed brass ring elements and a fine vertical rod infill panel behind the bottle display. Suspending the structure from the ceiling preserves the full counter surface for service and keeps the sightline across the room open at counter height. The LED strip under the marble overhang performs two functions simultaneously — it provides task illumination for the bartender's work surface and visually reduces the mass of the thick stone slab, so the counter appears to hover above the teal base rather than sit on it.

Bar counter — materials log

• Counter surface: Polished Arabescato marble, heavily veined white and grey

• Base paneling: Matte teal finish, painted sheet goods

• Toe kick: Metal banding, brushed brass tone

• Overhead shelving: Matte black square tubular steel, ceiling-suspended

• Shelving accent: Brushed brass rings + vertical rod infill panel

• LED integration: Continuous strip, recessed under counter overhang

Scope Integration: Paneling, Spatial Dividers, and Zone-by-Zone Millwork

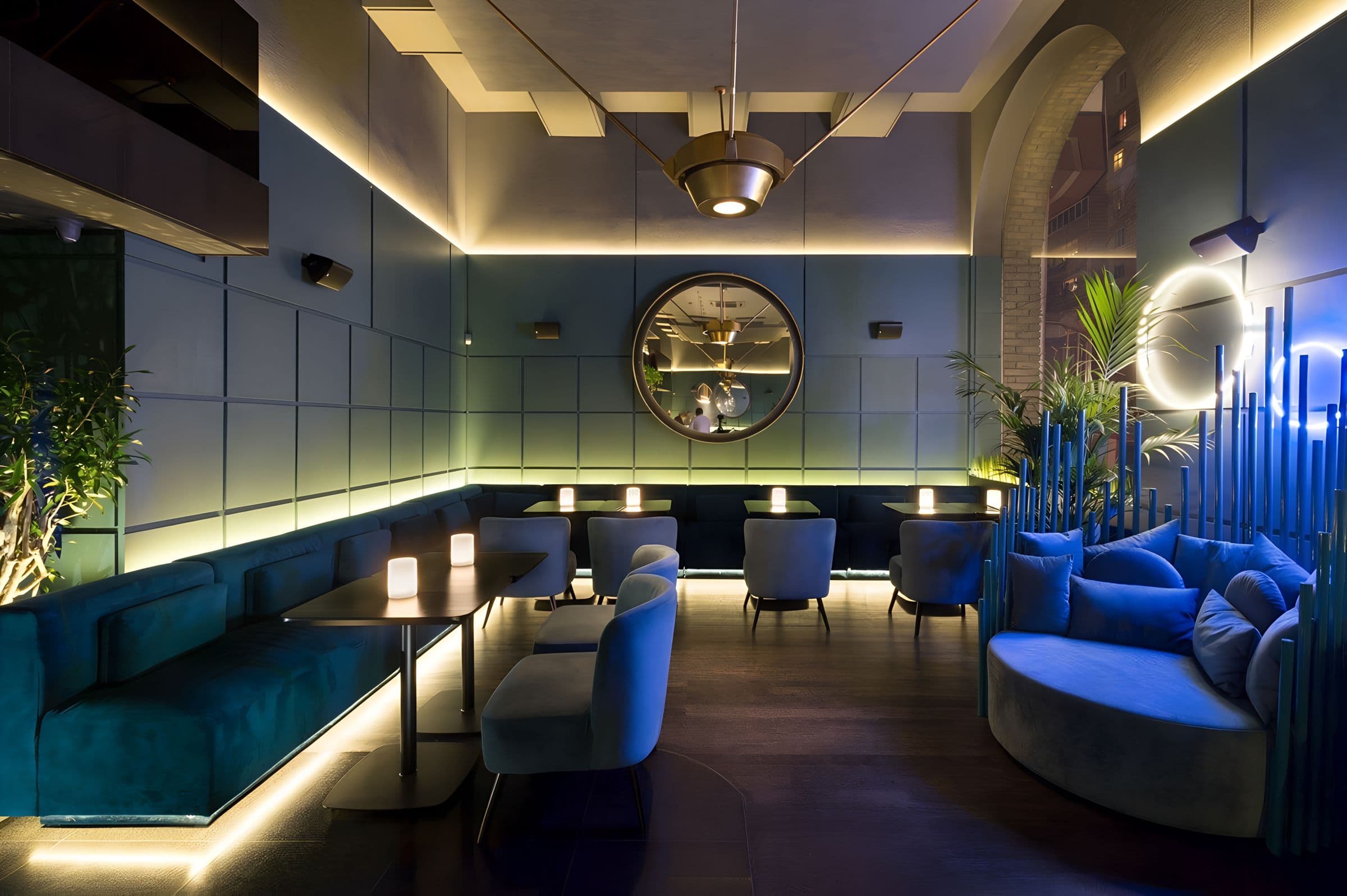

The lounge wall panels carry a routed square reveal grid that runs continuously across the main seating run, introducing shadow depth and geometric rhythm to the flat teal surface. The banquette zones use the same panel language on return walls, with an integrated LED strip running behind the backrest to wash the reveal pattern in indirect light and visually separate the seating from the wall plane. A second LED strip at the banquette base lifts the mass of the seating off the floor. In the corner lounge, the routed detail shifts to a diagonal parallel pattern — a denser, directional texture that gives the pocket seating a distinct surface character while holding the same teal specification.

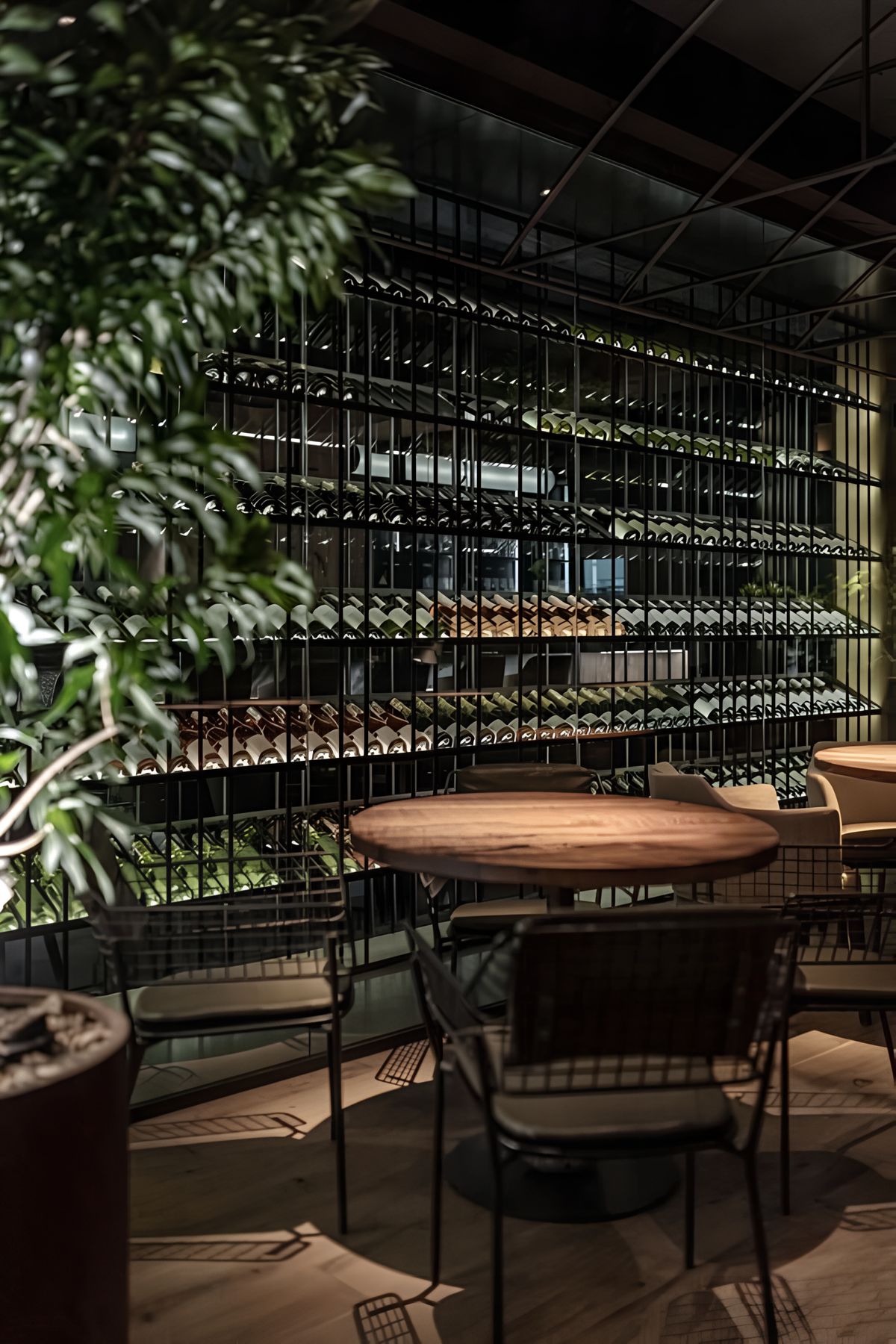

The floor-to-ceiling wine rack near the dining zone is fabricated in matte black steel rod: minimalist horizontal pegs extending from a vertical flat-bar frame hold bottles in a single layer, keeping labels forward and maintaining transparency through the fixture. The rack spans the full room height and functions as a spatial divider between zones without enclosing either side — sightlines pass through it and light reads continuously across it.

Full scope

• Bar counter base paneling, LED channel integrated
• Back bar wall paneling, matte teal finish
• Main lounge wall panels, square routed reveal grid
• Banquette surround panels, diagonal routed detail
• Floor-to-ceiling wine rack, matte black steel rod
• Tubular metal privacy screen, window seating pocket
• Washroom vanity cabinetry, teal finish, push-to-open

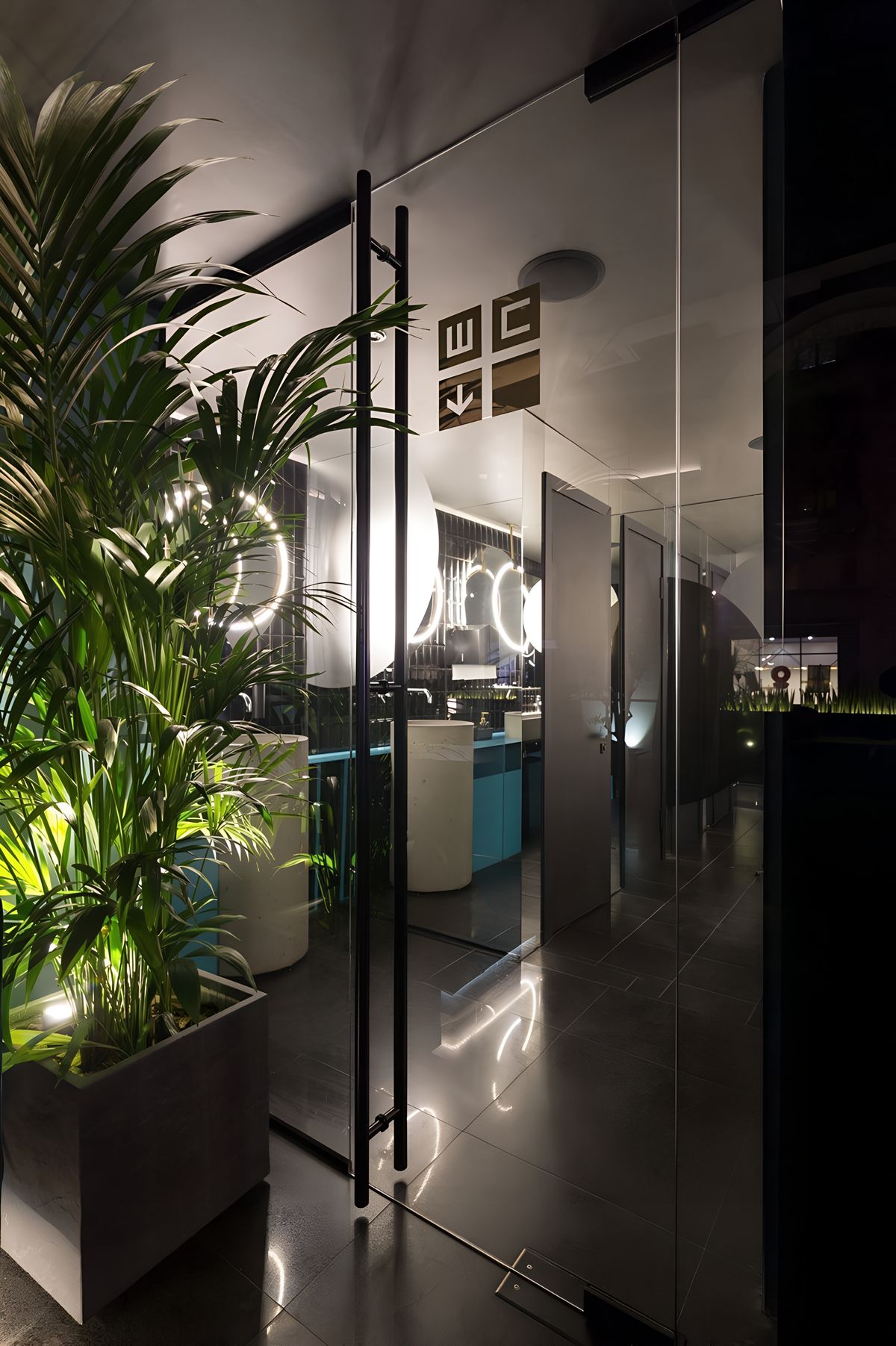

• Glass partition to washrooms, full-height minimal frame
• Supporting cabinetry, both levels

Materials & Precision: Finish Sequencing Under Indirect Light

The venue's reliance on indirect illumination meant finish sequencing was a fabrication priority, not an afterthought. Panels were finished to a matte specification and installed in sequence to maintain tonal continuity across adjacent faces — the reveal grids were CNC-routed to consistent depth and width throughout the full paneling run so the shadow cast by each reveal holds the same rhythm from the bar zone through to the banquette perimeters.

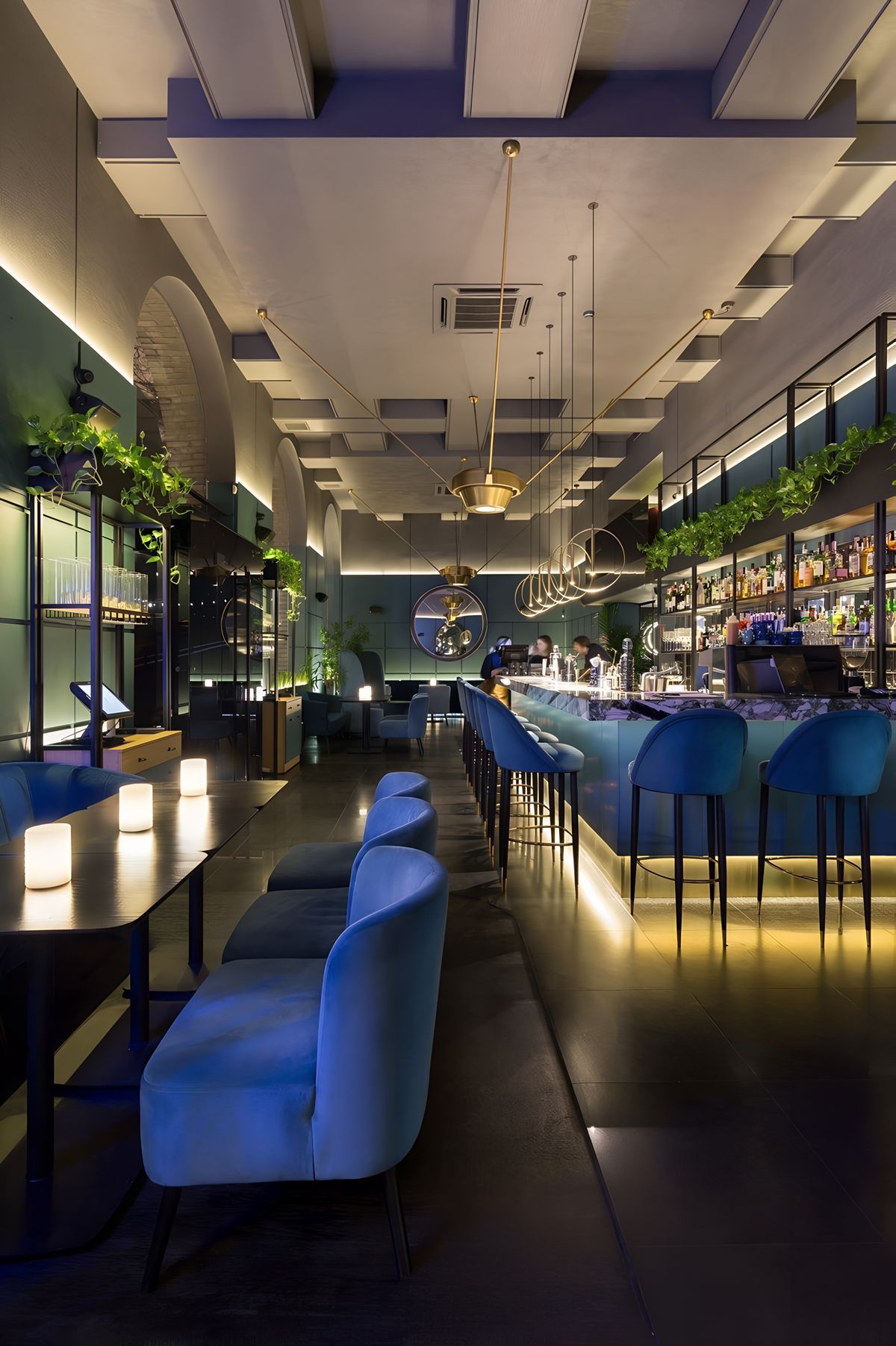

The ceiling above the main circulation path steps down in angled, staggered soffits that compress the room's volume toward the bar and seating while housing the MEP runs. The millwork installation was sequenced after the soffit structure was confirmed in place, allowing panel heights and return dimensions to be verified against as-built ceiling geometry before final fabrication.

Detail Feature: Privacy Screen — Window Pocket

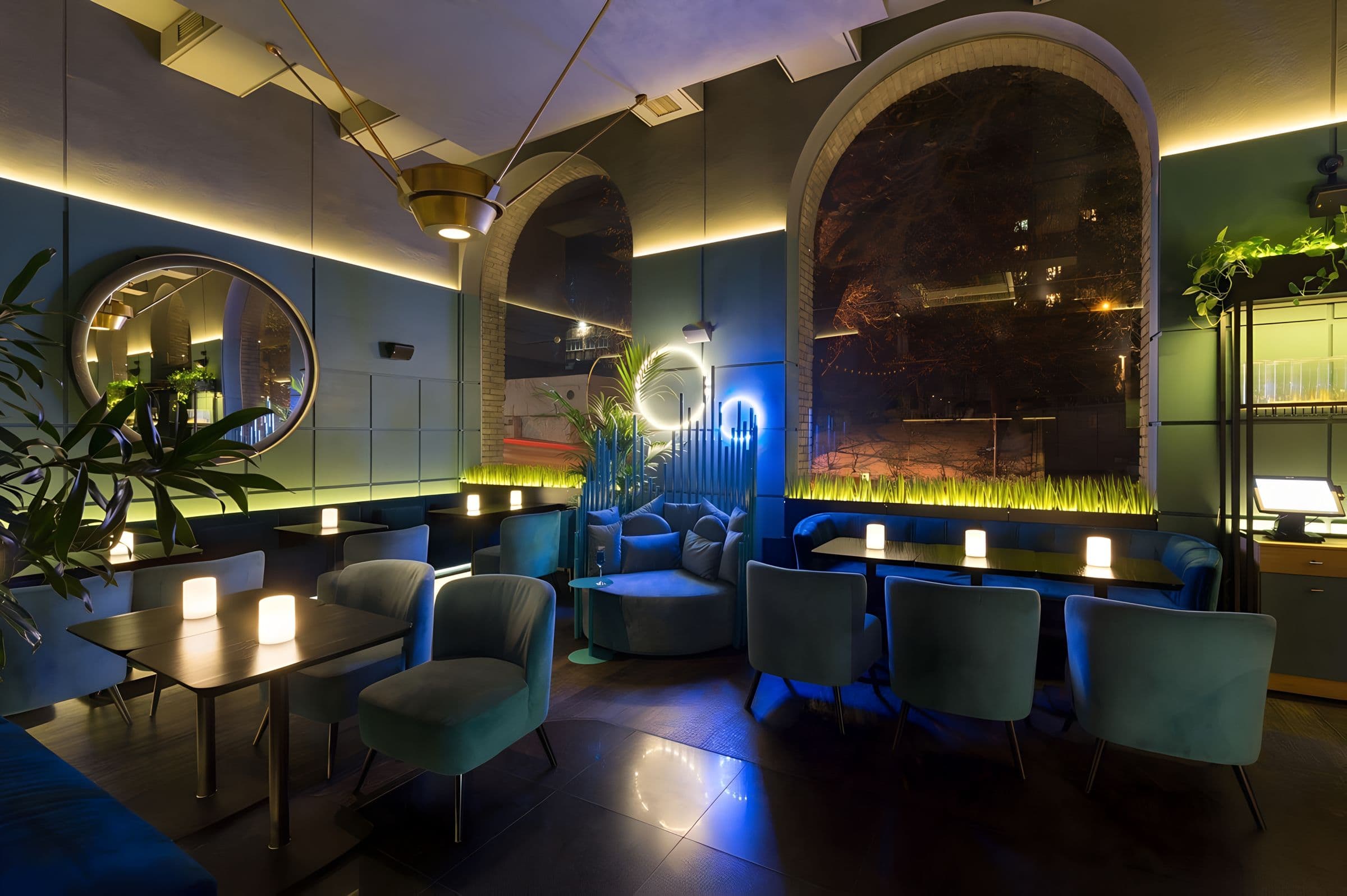

The window seating pocket is separated from the main circulation path by a custom screen of vertical tubular metal in a blue-teal finish, with tubes set at staggered heights. The staggered profile provides enclosure for the seating group without raising a solid wall: light passes through, the arched window remains visible from the room, and sightlines are preserved across the bar. The screen's finish was coordinated with the teal millwork panel specification, extending the color system into a metalwork element fabricated outside the millwork scope.

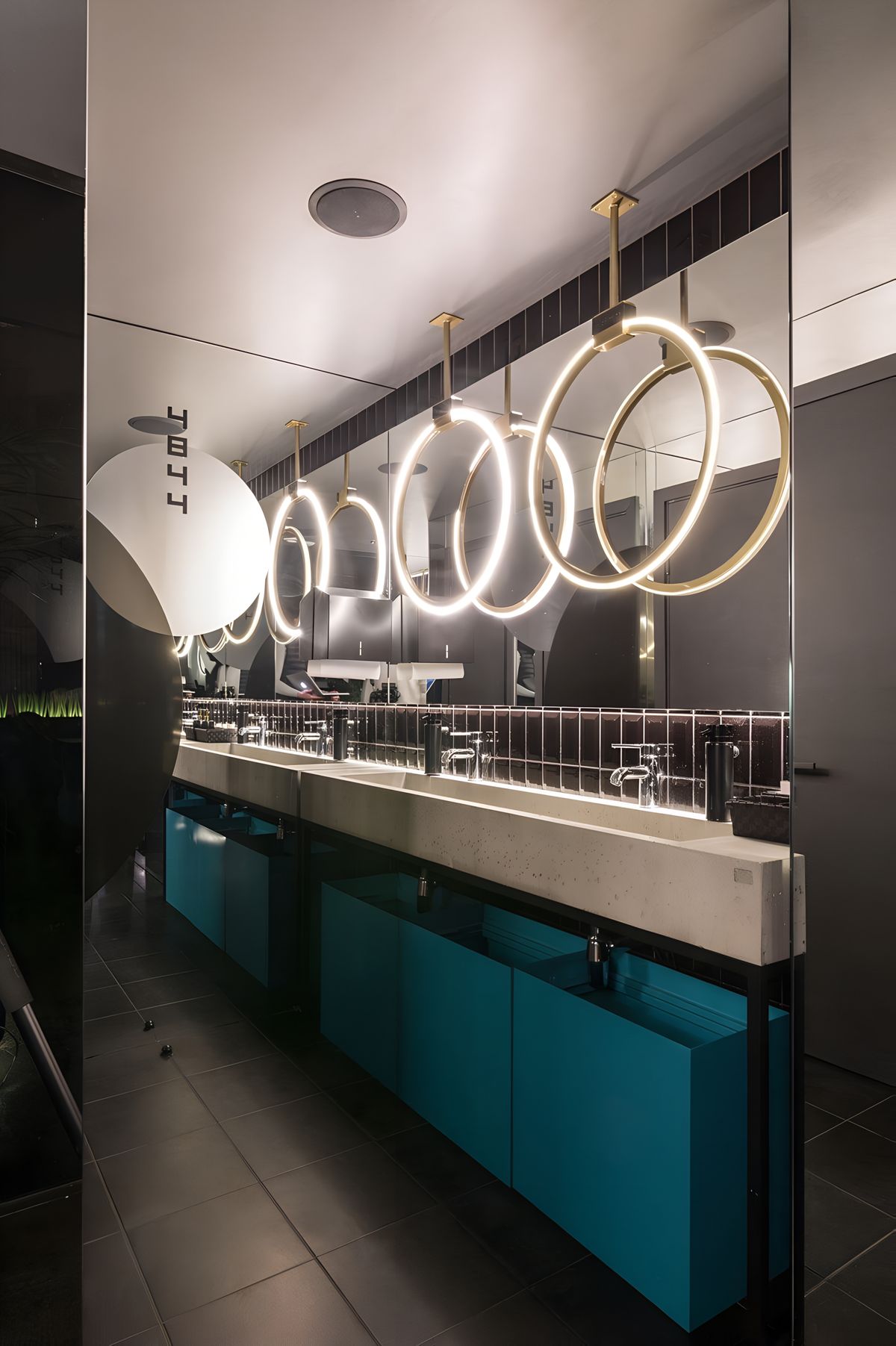

Detail Feature: Washroom Vanity — Teal Cabinetry, Push-to-Open, Concrete Trough

The washroom vanity runs as a continuous station: a long-span cast concrete trough sink on a minimal black metal support frame, above teal-finished cabinetry doors specified without applied hardware. Push-to-open mechanisms keep the face of the cabinetry flush, so the teal plane reads as an uninterrupted surface consistent with the wall panel treatment elsewhere. Brass bracket-mounted LED ring fixtures above the mirror reference the brushed brass ring detail on the back bar shelving, carrying that material note from the front-of-house bar into the washrooms.
